Industrial Seam Welding Manipulator with Flexible Multi-Process Welding Function to Boost Efficiency and Cut Labor Cost

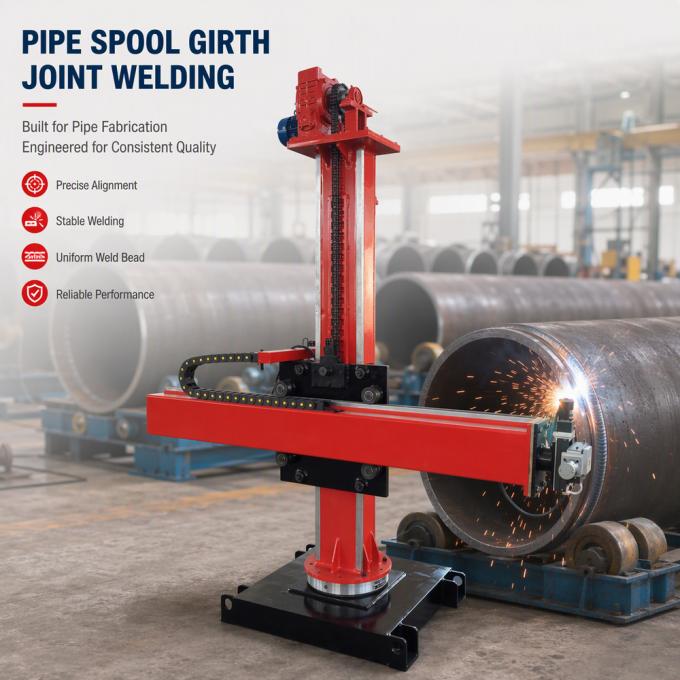

This 2000×2000mm rotatable welding manipulator is a fully automated welding auxiliary system engineered for standardized, repeatable, and high-efficiency fabrication of cylindrical metal workpieces. Designed to resolve the inconsistencies, low output, and high rework rates caused by traditional manual welding, this column and boom welding system delivers precise torch movement, stable arc control, and uniform weld formation for both longitudinal straight seams and circumferential girth seams.

Featuring a 2000mm horizontal boom travel, 2000mm vertical lifting stroke, and full 360° rotating base, this light-duty industrial manipulator offers an extremely flexible and large working range while maintaining a compact footprint. It works cooperatively with welding rotators and multiple welding power sources, making it ideal for mass production of carbon steel, alloy steel, and stainless steel tanks, pipes, barrels, and pressure vessels.

It is the perfect automated upgrade solution for small and medium workshops that want to improve welding quality, reduce labor reliance, lower defect rates, and maximize production efficiency without heavy equipment investment or factory renovation.

• Ultra-Wide Working Coverage: The 2000mm double stroke design provides a large working range, covering most medium-sized cylindrical workpieces in the industry. It supports both longitudinal and circumferential welding functions in one machine.
• Flexible Rotary Structure: The 360° rotating base breaks the limitation of fixed-direction welding equipment, realizing multi-angle and multi-station flexible production, ideal for limited-space workshops.
• Consistent & High-Quality Weld Appearance: Automated constant-speed traveling ensures uniform heat input, stable penetration, flat weld beads, fewer pores, and less oxidation. It greatly reduces post-weld polishing, grinding, and rework cost.
• Lower Labor Dependency: Intelligent one-person operation design reduces reliance on skilled welders. Ordinary workers can operate proficiently after simple training, solving welder shortage and high labor cost issues.
• Compact Layout & Easy Installation: Despite the large working stroke, the overall structure is compact. It requires no foundation modification, saves workshop space, and can be quickly put into production after installation and debugging.
• Stable Performance & Low Maintenance: Adopting industrial standard components and anti-wear, anti-rust treatment, the machine runs stably for long-term continuous production with low failure rate and easy daily maintenance.

This rotary welding manipulator is widely used in automated manufacturing of cylindrical metal products:

• Food & Beverage Sanitary Stainless Steel Tanks
• Pharmaceutical Vessels & Reaction Kettles
• Environmental Protection Water Treatment Equipment
• Chemical Storage Tanks & Mixing Barrels
• Large-Diameter Industrial Pipe Fabrication
• Boiler Auxiliary Equipment & Low-Pressure Vessels
• Mechanical Cylindrical Shell & Structural Welding

All our welding manipulators undergo strict assembly calibration, 24-hour continuous running test, and real workpiece trial welding before delivery. We provide English operation manuals, installation guidance, remote video training, and lifelong technical support.

Custom stroke, load capacity, automatic seam tracking system, and electric rotation functions are available according to customer production requirements.
