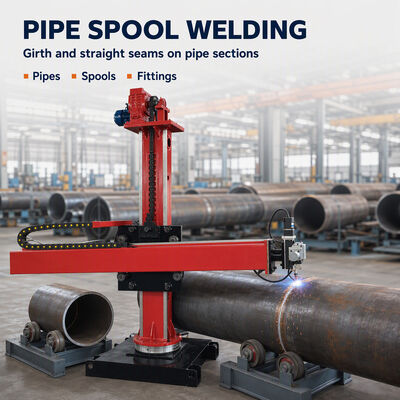

Compact Light-Duty Welding Manipulator | Pipe & Tank Circumferential Welding Equipment

The main column and boom are made of high-quality thick rectangular steel, processed by overall stress relief annealing and precision surface milling. The whole machine features high rigidity, no deformation and strong shock resistance, ensuring long-term continuous industrial operation stability.

Equipped with an industrial reducer and chain transmission mechanism, the boom stretching and column lifting movements are smooth and uniform. No jitter and no speed difference during welding travel, ensuring extremely uniform weld forming.

The welding torch holder supports up-down, left-right and forward-backward displacement adjustment plus angle rotation adjustment. It quickly adapts to workpieces of different diameters and different welding gap requirements, realizing accurate seam tracking.

All control lines, welding cables and air tubes are arranged inside high-toughness engineering plastic energy chains. This effectively prevents wire pulling, abrasion, aging and breaking during repeated movement, greatly extending equipment service life.

The heavy-duty fixed base ensures stable placement. The manual 360° rotation design allows flexible adjustment of welding angle, suitable for multi-position workpiece welding in limited workshop space.

Compared with heavy industrial welding manipulators, this light-duty model is miniaturized and optimized for small factories. It occupies little space, requires no complicated foundation construction, and can be put into production quickly after installation.

Automatic mechanical walking replaces manual operation. Welding speed, track and torch distance remain consistent every time. The weld seam is flat, smooth, uniform in width and stable in penetration, effectively reducing pores, incomplete penetration and welding deformation.

It can be perfectly matched with all mainstream welding machines and welding rotators on the market. One machine handles longitudinal welding and circular welding of various cylindrical workpieces, realizing multi-purpose equipment and high utilization rate.

Intelligent one-hand remote control design with simple buttons and clear functions. Workers can master the operation in a short time, reducing dependence on senior welders and greatly saving labor costs.

Adopts industrial standardized accessories and a mature transmission structure. Wear-resistant and anti-rust treatment for all moving parts. Stable performance for long-time continuous production, convenient daily maintenance and low replacement cost of spare parts.
