| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

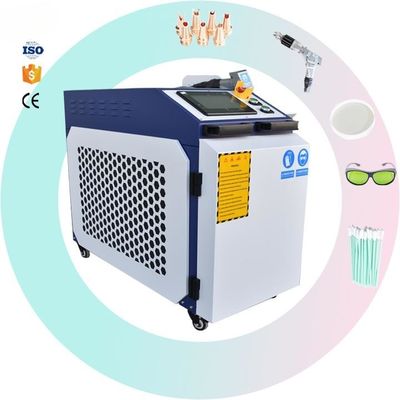

Ce Portable CNC 100w 200w 1000w 2000w Metal Fiber Laser Cleaning Machine
Product descriptions:
Laser Cleaning Machine Equipment is a high-tech cleaning device that has been developed to provide a more efficient and effective way of removing rust and oxide deposits from metal surfaces. This device combines the latest laser technology with a handheld design, making it easy to maneuver and access hard-to-reach areas.
The laser cleaning machine equipment uses a powerful laser beam to penetrate the surface of the metal, breaking up and removing rust, oxide, and other impurities. This process is much faster and more effective than traditional cleaning methods, such as sanding or chemical cleaning. Additionally, the laser cleaning process does not require any harsh chemicals or solvents, making it safer for the operator and the environment.
The handheld design of the Rust Removal metal Oxide Cleaner Laser Cleaning Machine Equipment allows for easy manipulation and control, even in confined spaces.
The device is lightweight and ergonomic, making it easy to use for extended periods of time without causing fatigue. It also features a built-in power supply and a long-lasting battery, allowing for continuous operation without the need for frequent recharging.
Overall, the Handheld Rust Removal metal Oxide Cleaner Laser Cleaning Machine Equipment is a versatile and efficient tool for removing rust and oxide deposits from metal surfaces. It offers a safe, environmentally friendly, and cost-effective alternative to traditional cleaning methods, making it an invaluable addition to any metalworking or maintenance workshop.
| Product Specification | ||||
| Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
| Laser source power | 1000w | 1500w | 2000w | 3000w |
| Laser wavelength | 1080±10mm | |||
| Laser type | Continuous/Modulation | |||
| Maximum Modulation Frequency | 20khz | |||
| Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
| Scan Width | 10-160mm | |||
| Power configuration | AC 220V±10% | AC 380V±7% | ||
| 6KW | 8KW | 10KW | 13KW | |
| Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
| Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
| Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
| Net weight | 106kg | 113kg | 137kg | 235kg |
| Gross Weight | 138kg | 145kg | 169kg | 280kg |
| Water tank Capacity |
16L(14-15L of water to be added | |||
Features
1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves,thermal stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Factory & Stocks
Packing & shipping
Certificate
FAQ:
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine,and the cleaning speed is within the range of 0.5m²/h-15m²/h
2.Is it possible to clean the mold?
Yes,You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox
3.The effect of paint and rust removal Very good, you can refer to our video below
4.Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.classification of cleaning
objects oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
|
|
