| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

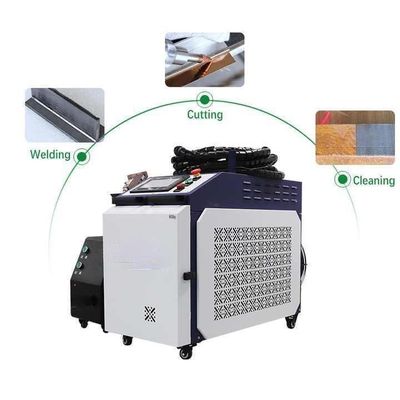

3 In 1 Multifunction High Efficiency Hand-Held Fiber Laser Cleaning Machine
Product descriptions:
The three-in-one laser welding, cutting and cleaning machine is a multi-functional device integrating laser technology, which can realize welding, cutting and cleaning operations of metal materials. It uses high-energy laser beams to process workpieces, which has the advantages of high precision, fast speed and high efficiency.
In terms of laser welding, this machine can be used to weld metal parts of different materials, such as steel, aluminum alloy, etc. Laser welding has the characteristics of small heat-affected zone and good weld quality, and can achieve high-strength welding connections.
In terms of cutting, the laser welding, cutting and cleaning three-in-one machine can focus the laser beam to a very small point and achieve the cutting operation by melting or vaporizing the material. It is suitable for cutting various metal materials, such as stainless steel, copper, etc. Laser cutting has the advantages of no contact, no vibration, clean cuts, etc., and can achieve high-precision cutting results.
In addition, the three-in-one laser welding, cutting and cleaning machine can also be used to clean the workpiece surface. By adjusting the parameters of the laser beam, dirt, oxide layers, etc. on the surface of the workpiece can be removed and its original smoothness and brightness can be restored.
| Product Specification | ||||
| Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
| Laser source power | 1000w | 1500w | 2000w | 3000w |
| Laser wavelength | 1080±10mm | |||
| Laser type | Continuous/Modulation | |||
| Maximum Modulation Frequency | 20khz | |||
| Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
| Scan Width | 10-160mm | |||
| Power configuration | AC 220V±10% | AC 380V±7% | ||
| 6KW | 8KW | 10KW | 13KW | |
| Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
| Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
| Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
| Net weight | 106kg | 113kg | 137kg | 235kg |
| Gross Weight | 138kg | 145kg | 169kg | 280kg |
| Water tank Capacity |
16L(14-15L of water to be added | |||
Features
The traditional industrial cleaning mode mostly uses chemical agents and mechanical methods for cleaning. With the increasing awareness of environmental protection and safety, the types of chemicals that can be used in industrial production cleaning will become less and less. Cleaner and non-destructive cleaning method is a problem we have to consider: continuous fiber laser cleaning machine has the characteristics of no grinding, no contact, no thermal effect and suitable for various materials, which is considered to be the most reliable and effective solution. At the same time, laser cleaning can solve the problems that can not be solved by traditional cleaning methods.
Factory & Stocks
Packing & shipping
Certificate
|
|
