| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

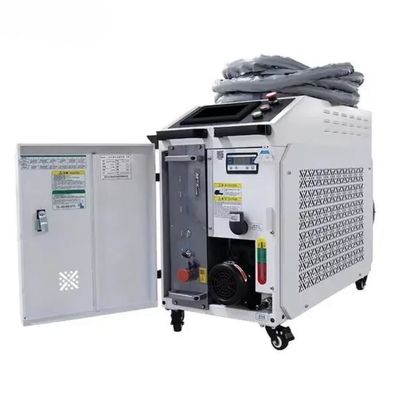

1000w 1500w 2000w 3000W Rust Paint Removing Machine Fiber Laser Cleaner
Product descriptions:
Laser cleaning machine is an efficient and environmentally friendly cleaning equipment. It uses high-energy laser beams to irradiate the surface of objects to quickly evaporate or peel off stains and oil stains on the surface, thereby achieving the purpose of cleaning. Compared with traditional cleaning methods, laser cleaning machines have many advantages. First of all, it can quickly clean stains and oil on the surface of various materials, and the cleaning effect is very good. It can clean the surface thoroughly without leaving any traces.
Secondly, the laser beam energy used by the laser cleaning machine is highly concentrated and will not cause damage or destruction to the surface of the object. Therefore, it is particularly suitable for cleaning some high-precision and high-value items. In addition, laser cleaning machines also have the advantages of high efficiency, environmental protection, and remote operation, and are widely used in industry, medical, scientific research and other fields.
In short, the laser cleaning machine is a very advanced cleaning equipment, and its emergence has brought great convenience and benefits to many industries.
| Product Specification | ||||
| Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
| Laser source power | 1000w | 1500w | 2000w | 3000w |
| Laser wavelength | 1080±10mm | |||
| Laser type | Continuous/Modulation | |||
| Maximum Modulation Frequency | 20khz | |||
| Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
| Scan Width | 10-160mm | |||
| Power configuration | AC 220V±10% | AC 380V±7% | ||
| 6KW | 8KW | 10KW | 13KW | |
| Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
| Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
| Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
| Net weight | 106kg | 113kg | 137kg | 235kg |
| Gross Weight | 138kg | 145kg | 169kg | 280kg |
| Water tank Capacity |
16L(14-15L of water to be added | |||
Features
1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves,thermal stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Factory & Stocks
Packing & shipping
Certificate
FAQ:
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine,and the cleaning speed is within the range of 0.5m²/h-15m²/h
2.Is it possible to clean the mold?
Yes,You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox
3.The effect of paint and rust removal Very good, you can refer to our video below
4.Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.classification of cleaning
objects oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
|
|
