Flame Cutting Machine ZG Strip Cutting Machine Cut Longitudinal And Transverse Directions

ZG strip cutting machine is an high efficient equipment for slitting steel sheet, designed for metal structure fabrication. It can cut longitudinal and transverse directions, high precision and small deformation, is an ideal slitting machine for metal structure fabrication.



ZG strip cutting machine is an high efficient equipment for slitting steel sheet, designed for metal structure fabrication. It can cut longitudinal and transverse directions, high precision and small deformation, is an ideal slitting machine for metal structure fabrication.

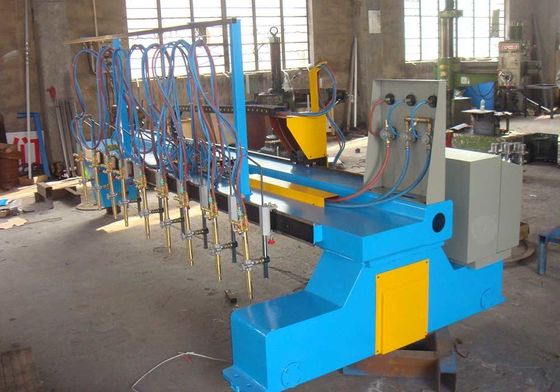

ZG Strip cutting machine is composed by T frame, longitudinal rail, longitudinal & transverse travel driving system, gas supply system, electrical control system, cutting torches and torch frame.

The longitudinal rail is precisely machined from steel rail. There is precisely machined rack at outside of rail. The longitudinal and transverse rail are both machined on precision grinder, to assure the cutting precision. Longitudinal movement is driven by AC motor through gear & rack to move frame on the longitudinal rail. Transverse movement is driven by AC motor through gear & rack to move on the transverse rail. Longitudinal & transverse movement are under AC speed adjust system, which has wide range and stable speed.

The torches for slitting are installed on the rail on the frame beam. They can move left or right on the rail and locked by manual. The torch height is adjusted by manual too. The transverse torch is installed on the backside of frame beam on the torch rack, it can lift by manual too.

Gas supply system is composed by gas adjust controller and pipe arrangement. Fuel and Oxygen are controlled through electromagnetic valve.



Model	ZG-3000	ZG-4000	ZG-5000	ZG-6000
Rail span	3000mm	4000mm	5000mm	6000mm
Cutting width	90-2300mm	90-3300mm	90-4300mm	90-5300mm
Cutting speed	200-2500(mm/min)	200-2500(mm/min)	100-3000(mm/min)	100-3000(mm/min)
Driving	single	single	Double	Double
Cutting thickness	6-100mm	6-100mm	6-100mm	6-100mm
