H Beam Automatic CO2 Assembly Machine Hydraulic System With High Strength And Light
  • name

H Beam Automatic CO2 Assembly Machine Hydraulic System With High Strength And Light

MOQ: 1SET
Standard Packaging: WOODEN PALLET
Delivery Period: 10-15 DAYS
Payment Method: L/C, T/T
Supply Capacity: 100SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
PR.CHINA
Brand Name
OTA
Certification
CE, ISO
Highlight:

H Beam Automatic CO2 Assembly Machine

,

Automatic CO2 Assembly Machine Hydraulic

,

High Strength CO2 Assembly Machine

Product Description

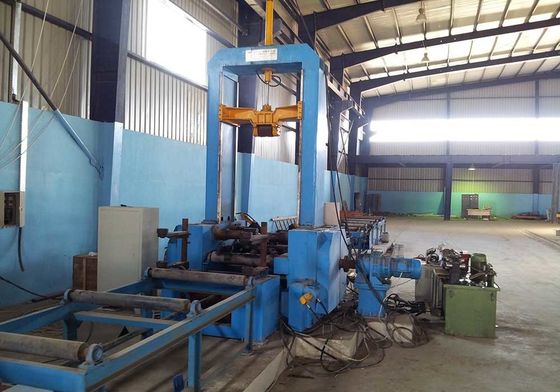

This machine is composed by main body and pulling rod system, transmission system, input & output conveyor, hydraulic system and electrical system.

The main parts are welded structures with high strength and light. Main parts are stress released to avoid deformation.



Structures:

This machine is composed by main body and pulling rod system, transmission system, input & output conveyor, hydraulic system and electrical system.

The main parts are welded structures with high strength and light. Main parts are stress released to avoid deformation.

The center location motion is driving by hydraulic system. The pulling rods make the plate center initially, the body assembly center and clamp the workpiece precisely. The whole procedure is controlled by pushbuttons on control cabinet, easy, convenient, and precise. The speed and pressure can be adjusted according to the beam size or worker’s skill. The assembly speed is inverter controlled and variable in range of 0.5-6m/min.

Features:
  • This machine is hydraulic transmission with mechanical center location, which is special designed after widely research the market.
  • The machine has location device to align the flange and web end.



Model Z15 Z18 Z20
Applied web height 200-1500mm 200-1800mm 200-2000mm
Applied web thickness 6-50mm 6-50mm 6-50mm
Applied flange width 200-800mm/1000mm 200-800mm/1000mm 200-800mm /1000mm
Applied flange thickness 6-60mm 6-60mm 6-60mm
Applied beam length 4-15/18m 4-15/18m 4-15/18m
Assembly speed 0.5-6m/min 0.5-6m/min 0.5-6m/min
Input conveyor 2600mmx3 2600mmx3 2600mmx3
Output conveyor 2600mmx3 2600mmx3 2600mmx3
Total power 18.7+2x12.8Kw 18.7+2x12.8Kw 18.7+2x12.8Kw
Tags:

gantry welding machine,

h beam flange straightening machine,

h beam welding machine
