H Beam Gantry Welding Machine / Arc Gantry Welder

MOQ:	1SET
Standard Packaging:	WOODEN PALLET
Delivery Period:	10-15 DAYS
Payment Method:	L/C, T/T
Supply Capacity:	100SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

PR.CHINA

Brand Name

OTA

Certification

CE, ISO

Minimum Order Quantity:

1SET

Packaging Details:

WOODEN PALLET

Delivery Time:

10-15 DAYS

Payment Terms:

L/C, T/T

Supply Ability:

100SETS/MONTH

Highlight

arc gantry welder

h beam gantry welding machine

arc gantry welding machine

Product Description

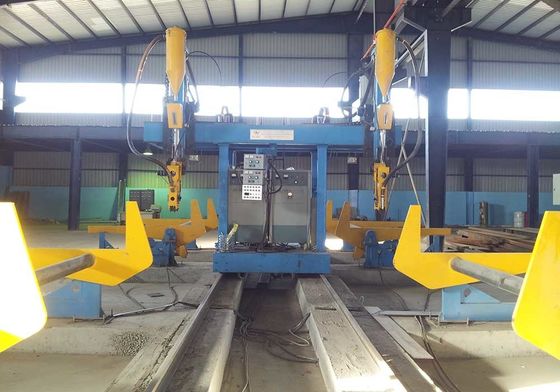

This machine is furnished two submerged arc welders to weld two H beams at the same time.

Model	LHA	LHT
Applied flange width	200-800mm/1000mm	200-800mm/1000mm
Applied web height	200-1500mm	200-2000mm
Applied beam length	4-15/18m	4-15/18m
Flux recovery sys	100kg*2	100kg*2
Main machine power	9kw(exclude welding power)

Main parameters:

Web height: 180-1500mm
Web Thickness: 5-32mm
Flange width: 180-800mm
Flange thickness: 5-40mm
Beam length: 4000-12000mm
Welding speed: 150-2400mm/min
Welding mode: Submerged Arc Welding
Flux recycling: 100kg*2
Main body power: 9Kw (excluding two welders)
Gas pressure: 0.4-0.6Mpa

Supply range:

Main body: Gantry, travel device, transverse sliding frame, wire feeder & accessories.
Welding Arms and carriage: arms, electrical transmitting devices, sliding devices and accessories, two groups each
Arc guider: Welding guns, mechanical adjusting devices, and arc guide frame, two groups each
Flux recycling system: 100Kg recycler, separator, flux hopper, flux recycling and feeding pipe.
Electrical control system: Electrical control box, 2pcs of Taiwan inverters, operation boxes, lights, alarming lights, etc.
Pipes & wires system: Welder wires, control wires, welding cables, Gantry control cables, gas pipes, sliding wire hanger, etc.
◆Welding system: 2 complete sets of ZHENGZHONG MZ-1000 welders.
