| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

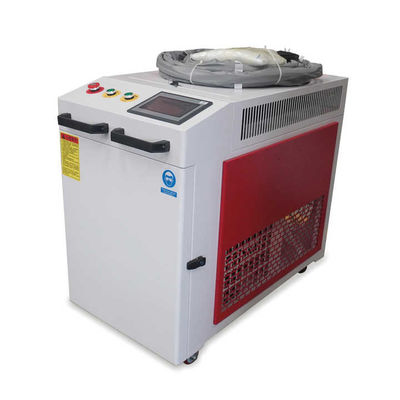

1000W 1500W 2000W Handheld Aluminum Laser Cleaning Welding Machine
Product descriptions:
A handheld laser welding machine is a laser that uses high-energy laser pulses to locally heat materials in a small area, diffuses into the material through heat conduction, and melts the material to form a specific molten pool and form a weld or solder joint. equipment.
At present, the application of handheld laser welding machines on the market has become more and more widespread. Our handheld laser welding machines have the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. They are widely used in thin stainless steel plates, iron plates, and aluminum plates.
In terms of welding of other metal materials, it can almost perfectly replace traditional argon arc welding and electric welding processes, and has even replaced resistance welding processes in many fields.
| Product Specification | ||||
| Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
| Laser source power | 1000w | 1500w | 2000w | 3000w |
| Laser wavelength | 1080±10mm | |||
| Laser type | Continuous/Modulation | |||
| Maximum Modulation Frequency | 20khz | |||
| Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
| Scan Width | 10-160mm | |||
| Power configuration | AC 220V±10% | AC 380V±7% | ||
| 6KW | 8KW | 10KW | 13KW | |
| Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
| Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
| Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
| Net weight | 106kg | 113kg | 137kg | 235kg |
| Gross Weight | 138kg | 145kg | 169kg | 280kg |
| Water tank Capacity |
16L(14-15L of water to be added | |||
1. Fast welding speed, 2~10 times faster than traditional welding.
2. Easy operating need no training
3. welding seam beautiful smooth and beautiful, don’t need polish, save your time.
4. No deformation or welding scar, firm welding of the workpiece.
5. Laser welding has less consumables and long service life.
6. Safer, more environmentally friendly.
Factory & Stocks
Packing & shipping
Certificate
|
|
