| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

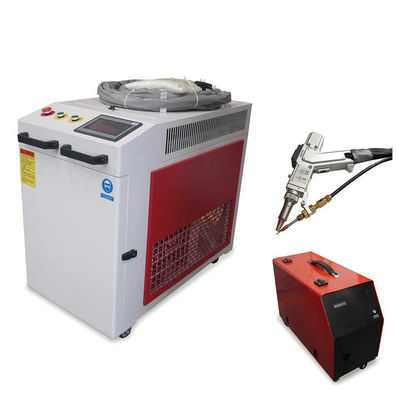

4 In 1 Cutting Cleaning Welding Small Handheld Fiber Laser Welding Machine
Product descriptions:
Laser welding uses high-energy laser pulses to locally heat materials in a small area. The energy of laser radiation diffuses into the interior of the material through heat conduction, melting the material to form a specific molten pool. It is a new type of welding method, mainly aimed at welding thin-walled materials and precision parts. It can realize spot welding, butt welding, stack welding, seal welding, etc. It has a high aspect ratio, small weld width, small heat affected zone, The deformation is small, the welding speed is fast, the weld is smooth and beautiful, no processing is required or only simple processing is required after welding, the weld is of high quality, no pores, can be precisely controlled, the focused light spot is small, the positioning accuracy is high, and it is easy to realize automation.
| Product Specification | ||||
| Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
| Laser source power | 1000w | 1500w | 2000w | 3000w |
| Laser wavelength | 1080±10mm | |||
| Laser type | Continuous/Modulation | |||
| Maximum Modulation Frequency | 20khz | |||
| Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
| Scan Width | 10-160mm | |||
| Power configuration | AC 220V±10% | AC 380V±7% | ||
| 6KW | 8KW | 10KW | 13KW | |
| Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
| Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
| Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
| Net weight | 106kg | 113kg | 137kg | 235kg |
| Gross Weight | 138kg | 145kg | 169kg | 280kg |
| Water tank Capacity |
16L(14-15L of water to be added | |||
1. Fast welding speed, 2~10 times faster than traditional welding.
2. Easy operating need no training
3. welding seam beautiful smooth and beautiful, don’t need polish, save your time.
4. No deformation or welding scar, firm welding of the workpiece.
5. Laser welding has less consumables and long service life.
6. Safer, more environmentally friendly.
