| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

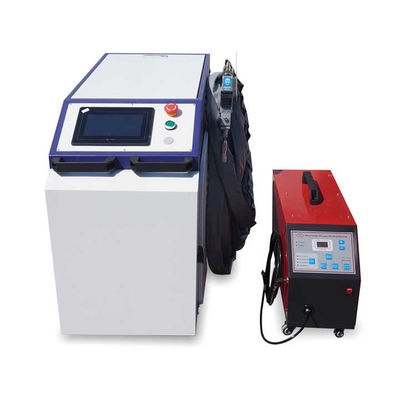

1000w 1500w 2000w 3000w Laser Welding Cleaning Cutting Machine 3 In 1
Product descriptions:
This multi-functional laser machine integrates the three functions of laser welding, cleaning and cutting. It is a revolutionary product in the field of industrial manufacturing and processing. It uses the most advanced laser technology to complete high-quality welding, cleaning and cutting work in a short time. The machine has four power options of 1000 watts, 1500 watts, 2000 watts and 3000 watts, which can be selected according to different materials and processing needs.
At the same time, the machine is also equipped with an auto-focus function, which can quickly and accurately process materials of different thicknesses. While ensuring efficient and high-precision processing, the machine also has the advantages of simple operation, stability and reliability. It is one of the indispensable and important equipment in the fields of factory automation and intelligent manufacturing.
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Welding depth (SS) |
2.68mm | 3.59mm | 4.57mm | 6.87mm |
| Welding depth (CS) |
2.06mm | 2.77mm | 3.59mm | 4.79mm |
| Welding depth (Al) | 2mm | 3mm | 4mm | 6mm |
| Feeding Wires Dimenson |
0.8-1.2 wire | 0.8-1.6 wire | 0.8-1.6 wire | 0.8-2.0 wire |
| Laser Wavelength | 1070+/-10 nm | 1070+/-10 nm | ||
| Laser Frenquency | 50-5000HZ | 50-5000HZ | ||
| Position System | Red Light Indicator | Red Light Indicator | ||
| Power Adjustment | 10-100% | 10-100% | ||
| Cooling Method | Water Chiller | Water Chiller | ||
| Spot Size | 1.2-3.0mm(option) | 1.2-3.0mm(option | ||
| Welding Head | Wobble Laser Welding Head | Wobble Laser Welding Head | ||
| Power Instability | <3% | <3% | ||
| Shielding Gas Flow | 15-20 L/min (Ar Or N) | 15-20 L/min (Ar Or N) | ||
| Power Supply | 220V 50860HZ | 220V/380V /50860HZ | ||
| Size(L*W*H)CM | 90*40*70 | 90*40*70 | 115*65*87 | |
| Net Weight | 190KG | 210KG | 220KG | 230KG |
| Total Powe Consumption |
≤3KW | ≤4.5KW | ≤6KW | ≤9KW |
Advantages of laser welding machine:
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high,
the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Factory & Stocks
Packing & shipping
Certificate
|
|
