| MOQ: | 1SET |
| Price: | USD2350-USD5980 |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

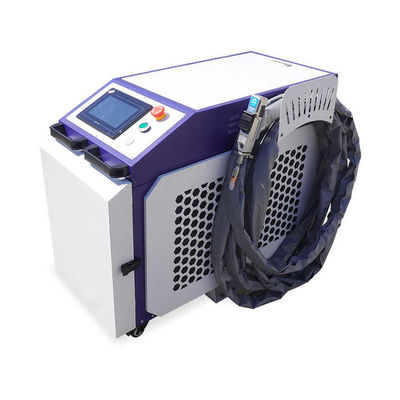

Multifunction Portable Hand Held Metal Fiber Laser Cleaning Welding Machine
Product descriptions:
The 3 in 1 laser welding cleaning cutting machine can not only clean the metal surface contaminants, but also weld and cut various metal materials. It is a multi-functional laser equipment. And it has three modes of welding cleaning and cutting, which can be flexibly switched.
Laser power: 1000W 1500W 2000W
Laser source brand: Raycus/Jpt/Max/Reci(optional)
Fiber laser width: 10m (optional)
Cooling system: water cooling
Air system: air compressor
Application: thin stainless steel plates, carbon steel plates, galvanized sheets, ect
Features:
1.High efficiency.
2.Simple interface operation.
3.Hand-held design is easy to carry.
4.No consumables
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Welding depth (SS) |
2.68mm | 3.59mm | 4.57mm | 6.87mm |
| Welding depth (CS) |
2.06mm | 2.77mm | 3.59mm | 4.79mm |
| Welding depth (Al) | 2mm | 3mm | 4mm | 6mm |
| Feeding Wires Dimenson |
0.8-1.2 wire | 0.8-1.6 wire | 0.8-1.6 wire | 0.8-2.0 wire |
| Laser Wavelength | 1070+/-10 nm | 1070+/-10 nm | ||
| Laser Frenquency | 50-5000HZ | 50-5000HZ | ||
| Position System | Red Light Indicator | Red Light Indicator | ||
| Power Adjustment | 10-100% | 10-100% | ||
| Cooling Method | Water Chiller | Water Chiller | ||
| Spot Size | 1.2-3.0mm(option) | 1.2-3.0mm(option | ||
| Welding Head | Wobble Laser Welding Head | Wobble Laser Welding Head | ||
| Power Instability | <3% | <3% | ||
| Shielding Gas Flow | 15-20 L/min (Ar Or N) | 15-20 L/min (Ar Or N) | ||
| Power Supply | 220V 50860HZ | 220V/380V /50860HZ | ||
| Size(L*W*H)CM | 90*40*70 | 90*40*70 | 115*65*87 | |
| Net Weight | 190KG | 210KG | 220KG | 230KG |
| Total Powe Consumption |
≤3KW | ≤4.5KW | ≤6KW | ≤9KW |
Advantages of laser welding machine:
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high,
the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Factory & Stocks
Packing & shipping
Certificate
|
|
