| MOQ: | 1SET |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |
Our WP series chuck has the features of high precision, light structure, easy operation, no deformation and no jammed. By reduce the body thickness, the distance between the job and the machine is reduced to improve the loading capacity. The knob is used to quick fastening and loosing to improve the welding & cutting efficien

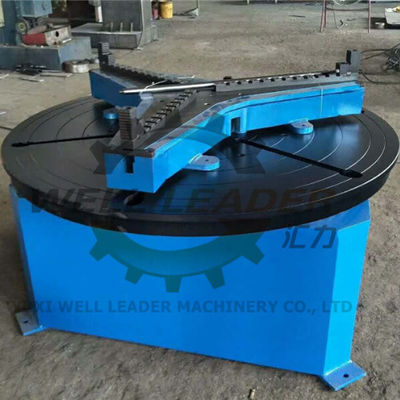

The ZT series of floor turntable is composed by the basement, rotation driving device, working turntable, rotation device and electrical control system.
The basement is a welded structure, heat treatment is done to achieve good rigidity and avoid deformation. The rotation driving device is the gearbox and brand motor, which is engaged to the high precision slew bearing. The rotation has variable speed which is controlled through the control box to achieve a proper speed according to the different requirements.
There are six (or more) slots on the table, chuck can be mounted on it to clamp the workpiece.
Electrical system is composed by famous brand products as Schneider, Siemens, Mitsubishi, etc.
|
型号 Model |
ZT-05 | ZT-10 | ZT-30 | ZT-50 | ZT-100 | ZT-200 |
| 最大承载Max Loading | 500kg | 1000kg | 3000kg | 5000kg | 10000kg | 20000kg |
| 台面直径Table Diameter | 600mm | 1000mm | 1200mm | 1500mm | 1800mm | 2000mm |
| 回转速度Rotation Speed | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.04-0.4 | 0.03-0.3 |
| 速度控制Speed Control |
变频调速/PLC 控制配合机器人工作 VFD (inverter) / PLC |
|||||
|
电机功率 Motor |
0.25kw | 0.55kw | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
Video
Video
Video
Video
Video
|
|
