Fiber Laser Welding System for Railing Assembly Work, High Quality Welds for Balustrade and Guardrail Production

In the architectural metal fabrication industry, railing and fence production has extremely strict requirements for welding appearance and structural stability. All welding joints between balusters, vertical posts and horizontal rails are exposed directly on finished products, requiring flat seams, consistent lines, zero deformation and minimal surface defects.

Traditional MIG, TIG and electric welding can no longer meet modern production standards. They generate excessive heat diffusion, causing stainless steel and carbon steel tubes to bend, shrink and turn black at welding points. Heavy spatter, rough bead lines and uneven joint gaps require extensive grinding, polishing and correction work, resulting in slow production speed, high labor costs, high defective rates and unstable batch quality.

This new-generation handheld fiber laser welding machine is professionally optimized for railing assembly and tubular profile welding. Adopting precision focused laser melting technology, it achieves low-heat, spatter-free, deformation-free and high-consistency welding for baluster-to-rail connections, tube splicing and frame assembly. With ultra-simple intelligent operation, even inexperienced workers can produce high-standard railing welds steadily. It is the ideal upgrade equipment for modern stair railing, balcony balustrade, guardrail and metal fence manufacturing factories.

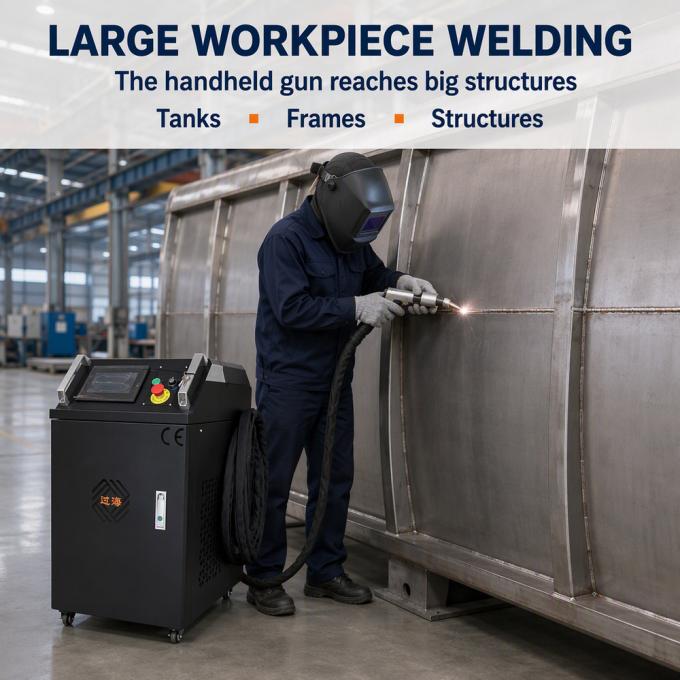

The complete laser welding system adopts an industrial integrated modular design, including a high-stability continuous fiber laser source, intelligent digital control system, lightweight ergonomic welding gun, high-flexibility long-distance optical fiber transmission system, constant-temperature closed circulating water cooling system and mobile lockable cabinet.

Different from traditional surface thermal welding, fiber laser welding uses a high-density concentrated laser beam for instantaneous local melting. The laser energy is accurately focused on the tube joint gap between baluster and rail. It melts metal instantly to form a fine, dense and high-strength welding seam. The heating time is extremely short, and the heat-affected zone is precisely controlled. The surrounding tube surface will not be affected by high temperature, fundamentally avoiding tube deformation, oxidation blackening and thermal shrinkage.

The upgraded ultra-light welding gun weighs only 0.8–1.2 kg, specially optimized for long-term repeated multi-angle assembly work. It supports 360° full-range dead-angle-free welding, perfectly adapting to various complex connection structures in railing production, including T-shaped vertical and horizontal tube joints, cross joints, oblique splicing and frame corner welding.

A built-in multi-dimensional intelligent safety protection system automatically cuts laser output in case of collision, tilt or misoperation, ensuring zero safety risk in complex workshop assembly environments.

The 7-inch industrial high-definition touch screen stores mass preset process formulas for stainless steel tubes, carbon steel tubes and thin-wall profiles. Operators can select corresponding material and thickness modes with one click. The system automatically matches laser power, welding speed and swing parameters to achieve standardized batch welding.

The fully enclosed circulating water cooling system realizes 24-hour real-time constant temperature heat dissipation, ensuring stable laser power output without attenuation during long-time continuous railing mass production. The mobile cabinet with silent brake casters can be freely moved to any station, supporting on-site integral welding of large assembled railing frames without disassembly and secondary calibration.

This professional laser welding machine is specially developed for the architectural metal decoration and railing fabrication industry.

• Stainless steel stair railings
• Balcony balustrades
• Villa decorative handrails
• Indoor safety guardrails
• Outdoor community fences
• Road guardrails
• Garden metal fences
• All kinds of tubular metal frames

• Baluster assembly welding
• Square tube welding
• Round tube splicing
• T-joint welding
• Cross joint welding
• Cosmetic precision welding

For railing and fence manufacturers, this handheld laser welding machine achieves a comprehensive upgrade of production technology, quality and efficiency.

It completely solves the industry pain points of welding deformation, blackening, spatter and inconsistent quality. High-standard welding appearance significantly improves product grade and market competitiveness, helping factories win more high-end engineering and export orders.

Intelligent low-threshold operation alleviates the difficulty of recruiting skilled welders and stabilizes workshop output. Reduced polishing workload and rework rate greatly lower production costs. With stable performance, ultra-long service life and low maintenance cost, it creates long-term stable economic benefits for metal fabrication enterprises.
