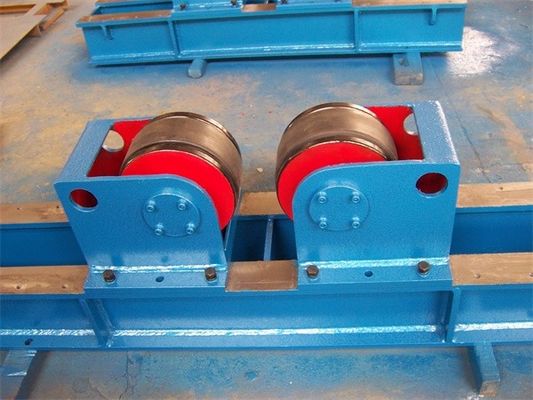

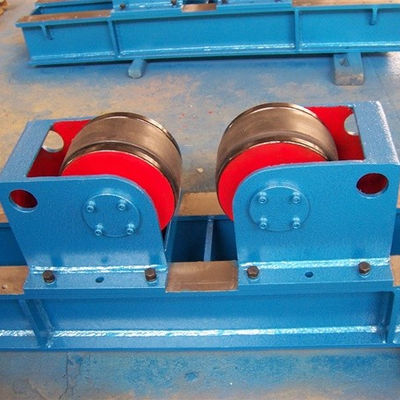

Adjustable Auxiliary Pipe Spiral Rod Welding Rotator Turning Roller

Adjustable Auxiliary Pipe Spiral Rod Welding Rotator Turning Roller

MOQ: 1SET
Standard Packaging: WOODEN PALLET
Delivery Period: 10-15 DAYS
Payment Method: L/C, T/T
Supply Capacity: 100SETS/MONTH
Detail Information
Place of Origin
PR.CHINA
Brand Name
OTA
Certification
CE, ISO
Motor Power:
2*2.2KW
Voltage:
220V
Loading Capacity:
1-100t
After-sales Service Provided:
Online Support,Video Technical Support,Field Maintenance And Repair Service
Model:
GK-60
Max Loading Weight:
60000
Highlight:

Adjustable pipe rotator for welding

,

pipe rotator Turning Roller

,

Spiral Rod welding rotator machine

Product Description

Product Description

Conventional tank welding rotator can be matched to the different work piece diameter through reserved screw hole or shift bolts to adjust roller center distance. According to the requirements, we provide PU rollers or Steel rollers for selection. PU provide good friction when rotation, while Steel rollers resist aging very well. The rotator is used mainly for welding, polishing, and assembling etc, By combined working with other equipment, the machine can realize the tank being assembled and welded. We also design and work out solutions on the users' requirements.



Application Industries

Widely Applications in:
- Chemicals & petrochemicals industry
- Boiler industry
- Storage tank fabrication
- Pipe industry
- For Welding, Painting, Blasting, Assembly etc



Features
  1. Polyurethane is an emerging organic polymer material, known as the "fifth plastic", with good oil resistance, toughness, wear resistance, and aging resistance. The polyurethane rollers used in our roller racks are cast from imported polyurethane. Compared with ordinary rubber, they have higher mechanical strength (2 to 3 times that of natural rubber), excellent wear resistance (5 to 10 times that of natural rubber), outstanding compression resistance, and high elasticity at high hardness (a feature not found in other rubbers), and are particularly suitable for welding of wind tower production lines and stainless steel cylinders.
  2. The roller bearing adopts aligning roller bearing, which has the characteristics of strong bearing capacity and impact resistance.
  3. All shaft parts have been tempered, and gear parts have been tempered and quenched.
  4. The welding base is formed by plate welding and destressed, with sufficient strength to ensure long-term use.
  5. All shaft holes are processed by CNC boring machines, and the transmission gear accuracy is level 7 to ensure dimensional accuracy.
  6. The electric control system consists of a control box and a hand control box. The control box and the active roller frame are separated by a connecting power cord to avoid damage due to operating errors; the connection line between the control box and the hand control box uses an ultra-soft multi-wire cable to ensure safe use.

Product Parameters

Adjustable Auxiliary Pipe Spiral Rod Welding Rotator Turning Roller 0
