| MOQ: | 1SET |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |
Product Description:
Conventional tank welding rotator can be matched to the different work piece diameter through reserved screw hole or shift bolts to adjust roller center distance. According to the requirements, we provide PU rollers or Steel rollers for selection. PU provide good friction when rotation, while Steel rollers resist aging very well. The rotator is used mainly for welding, polishing, and assembling etc, By combined working with other equipment, the machine can realize the tank being assembled and welded. We also design and work out solutions on the users' requirements.
Application:
Widely Applications in:
- Chemicals & petrochemicals industry
- Boiler industry
- Storage tank fabrication
- Pipe industry
- For Welding, Painting, Blasting, Assembly etc
Product Parameter:
|
型号 Model |
最大承载 Max loading (Kg) |
适应工件直径Applied job dia (mm) |
滚轮直径和宽度 Wheel dia. & width(mm) |
滚轮线速度Wheel linear speed(mm/min) | 电机功率Motor power(kw) | |
| 橡胶轮Rubber |
金属轮 Metal |
|||||
| GK-5 | 5000 | Φ250-2300 | Φ250*100 | 2*Φ240*20 |
100-1000 By stepless invertor |
2×0.37 |
| GK-10 | 10000 | Φ320-2800 | Φ300*120 | 2*Φ290*25 | 2×0.55 | |
| GK-20 | 20000 | Φ500-3500 | Φ350*120 | 2*Φ340*35 | 2×1.1 | |
| GK-40 | 40000 | Φ600-4200 | Φ400*120 | 2*Φ390*45 | 2×1.5 | |
| GK-60 | 60000 | Φ750-4800 | Φ450*120 | 2*Φ440*60 | 2×2.2 | |
| GK-80 | 80000 | Φ850-5000 | Φ500*120 | 2*Φ490*70 | 2×3 | |
| GK-100 | 100000 | Φ1000-5500 | Φ500*120 | 2*Φ490*100 | 2×4 | |
| GK-160 | 160000 | Φ1100-6000 | Φ600*220 | 2×4 | ||
| GK-250 | 250000 | Φ1200-7000 | Φ700*290 | 2×5.5 | ||
| GK-400 | 400000 | Φ1300-7500 | Φ800*320 | 2×7.5 | ||
| GK-650 | 650000 | Φ1400-8500 | Φ900*400 | 2×11 | ||

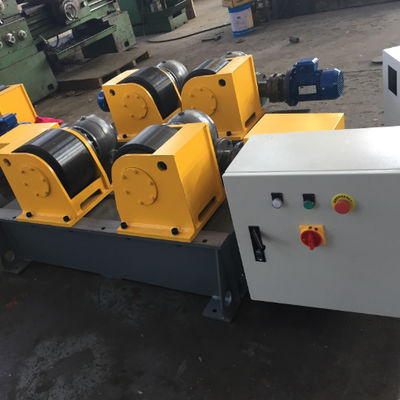

Detail Photo:
Video
Video
|
|
