Wind Tower Growing Line Fit Up Rotator Spot Welding Adjustable Hydraulic

MOQ: 1SET
Standard Packaging: WOODEN PALLET
Delivery Period: 10-15 DAYS
Payment Method: L/C, T/T
Supply Capacity: 100SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
PR.CHINA
Brand Name
OTA
Certification
CE, ISO
Model Number
GK
Wheel Linear Speed:
100~1000mm/min
Max Loading(kg):
20-100
Applied Job Dia(mm):
θ1500-6500
Minimum Roller Size(mm):
θ350*150
Material:
Steel
Highlight:

Wind Tower Growing Line welding rotator

,

Fit Up welding rotator

,

Hydraulic Spot welding rotator

Product Description
The fit-up rotator consists of a set of hydraulic lifting rotator (2 units)and a set of travelling welding rotator (2 units).The four cylinders of the hydraulic lifting rotator are used to telescopically control the distance between the centers of the four rollers,to change the upper tower displacement in the height direction and the horizontal direction,so as to completely fit with the tower placed on the traveling welding rotator,and the rotation of the traveling welding rotator drives the rotation of the two towers sections,so that the tower group is completed synchronously fit.The welding is completed on the automatic welding equipment to complete the pair welding of the entire tower body.

Below are the relevant parameters for different models
Model Max loading(kg) Applied job dia(mm) Roller dia &width(mm) Wheel linear speed(mm/min)
GK-20-F 2000 θ1500-4000 θ350*150 100-1000mm/min
GK-40-F 4000 θ2000-4500 θ400*160 100-1000mm/min
GK-60-F

60000

 θ2500-5000 θ450*180 100-1000mm/min
GK-80-F 80000 θ2800-5500 θ500*200 100-1000mm/min
GK-100-F 100000 θ3000-6500 θ500*220 100-1000mm/min


The growing line is composed by one set of fix type hydraulic fit-up rotator and one set of movable adjustable rotator.
The wind tower body is fit-up and welded at this working station. The first section is placed on the adjustable rotator, the second is put on the hydraulic fit up rotator. After align the two section, by adjusting fit up rotator, spot welding is done by rotate the adjustable rotator. The manipulator complete outside and inside circular welding after fit up. Steps by steps, the sections is connected and grow to the whole line, until the last section with flange is welded.
  • 1st step, put the section with flange on one set of rotator
  • 2nd step, put the second section on the fit up rotator, do spot welding by adjust the fit up rotator.
  • 3rd, Welding manipulator finish inside circular welding.
  • 4th, move the adjustable rotator to pull the section backward.
  • 5th , put the third section on the fit up rotator.
  • 6th, do spot welding by adjusting the fit up rotator.
  • 7th , welding manipulator finish inside circular welding.
  • 8th , the adjustable rotator move backwards together with the tower body.
  • 9th, put the fourth section on fit up rotator
  • 10th, spot welding done by adjusting fit up rotator
  • 11th, welding manipulator finish inside circular welding.Repeat above steps until the last section with flange is fit up.
  • 12th , the movable manipulator do all outside circular welding.

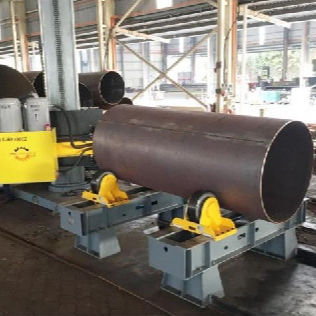

  • Wind Tower Growing Line Fit Up Rotator Spot Welding Adjustable Hydraulic 0
    Put The Second Section On The Fit Up Rotator, Do Spot Welding By Adjust The Fit Up Rotator.
  • Wind Tower Growing Line Fit Up Rotator Spot Welding Adjustable Hydraulic 1
    Do Spot Welding By Adjusting The Fit Up Rotator.
  • Wind Tower Growing Line Fit Up Rotator Spot Welding Adjustable Hydraulic 2
    Spot Welding Done By Adjusting Fit Up Rotator
  •



Tags:

self aligning welding rotator,

tank rotator,

self aligning rotator
