| MOQ: | 1SET |
| Standard Packaging: | WOODEN PALLET |
| Delivery Period: | 10-15 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100SETS/MONTH |

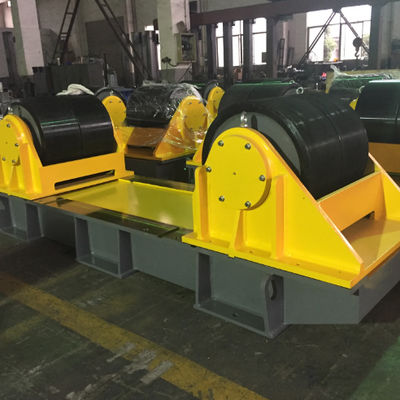

Conventional tank welding rotator can be matched to the different work piece diameter through reserved screw hole or shift bolts to adjust roller center distance. According to the requirements, we provide PU rollers or Steel rollers for selection. PU provide good friction when rotation, while Steel rollers resist aging very well. The rotator is used mainly for welding, polishing, and assembling etc, By combined working with other equipment, the machine can realize the tank being assembled and welded. We also design and work out solutions on the users' requirements.
Widely Applications in:
- Chemicals & petrochemicals industry
- Boiler industry
- Storage tank fabrication
- Pipe industry
- For Welding, Painting, Blasting, Assembly etc
The corwerntional rotator is apoled for welding,poishing,glue-Iining,or assembing of ppestanks,pressure vesses,ete.The dstance of wo rolers are adjustabe,and rolers are made n high quality PU materal and toughness steel Equpped wih qualfed AC Irvertor and brake motors,he working performance and satety are wel improved and guaranteed.
*Each set of rotator nomally consists of one power unit,one idler unit and one electrical control system.
*Several idler units can be set.
*Schneider /Mitsubishi invertor
*Remote box with 10mtrs control cable.
*Optional wirelessremote box for 200mtrs contoldstance.
*CE Approved.
Below are the product parameters for different models.
|
型号 Model |
最大承载 Max loading (Kg) |
适应工件直径Applied job dia (mm) |
滚轮直径和宽度 Wheel dia. & width(mm) |
滚轮线速度Wheel linear speed(mm/min) | 电机功率Motor power(kw) | |
| 橡胶轮Rubber |
金属轮 Metal |
|||||
| GK-5 | 5000 | Φ250-2300 | Φ250*100 | 2*Φ240*20 |
100-1000 By stepless invertor |
2×0.37 |
| GK-10 | 10000 | Φ320-2800 | Φ300*120 | 2*Φ290*25 | 2×0.55 | |
| GK-20 | 20000 | Φ500-3500 | Φ350*120 | 2*Φ340*35 | 2×1.1 | |
| GK-40 | 40000 | Φ600-4200 | Φ400*120 | 2*Φ390*45 | 2×1.5 | |
| GK-60 | 60000 | Φ750-4800 | Φ450*120 | 2*Φ440*60 | 2×2.2 | |
| GK-80 | 80000 | Φ850-5000 | Φ500*120 | 2*Φ490*70 | 2×3 | |
| GK-100 | 100000 | Φ1000-5500 | Φ500*120 | 2*Φ490*100 | 2×4 | |
| GK-160 | 160000 | Φ1100-6000 | Φ600*220 | 2×4 | ||
| GK-250 | 250000 | Φ1200-7000 | Φ700*290 | 2×5.5 | ||
| GK-400 | 400000 | Φ1300-7500 | Φ800*320 | 2×7.5 | ||
| GK-650 | 650000 | Φ1400-8500 | Φ900*400 | 2×11 | ||
